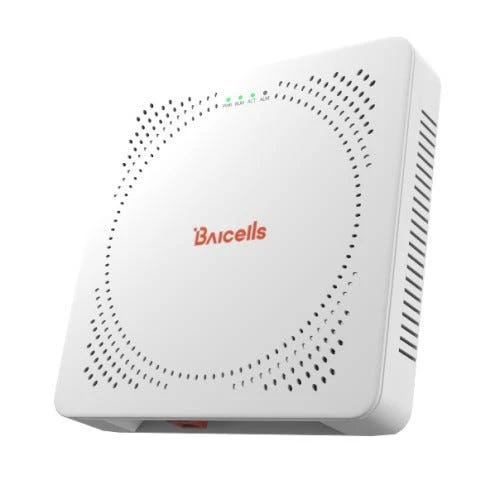

BaiCells PBS31010 Neutrino430 Indoor LTE TDD eNodeB Base Station, 3.5 GHz

The BaiCells PBS31010 Neutrino430 is an indoor LTE TDD eNodeB designed to provide cellular radio access for compatible broadband, enterprise, and private LTE networks. Its compact, all-in-one design integrates a 3 dBi omnidirectional antenna, supporting indoor deployments where a dedicated external cellular antenna may not be required.

The Neutrino430 operates in LTE TDD Band 48, covering 3550–3700 MHz in the standard configuration. It supports 5, 10, 15, and 20 MHz single-carrier bandwidths, as well as two-carrier carrier aggregation (CA) or dual-carrier (DC) operation. These modes allow compatible deployments to use available spectrum more efficiently.

For network connectivity, the PBS31010 provides one Gigabit Ethernet interface and one optical SFP interface. It supports 12 V DC power or compatible IEEE 802.3at PoE+ power equipment. Management features include local and remote web administration, TR-069, monitoring, diagnostics, and software upgrades.

The device also supports GPS synchronization, IEEE 1588v2 synchronization, and BaiCells HaloB embedded EPC functionality. HaloB can provide selected core-network functions within the eNodeB, subject to the supported software and configuration.

Important: The PBS31010 is cellular infrastructure equipment, not a consumer Wi-Fi router. It requires a compatible LTE deployment and appropriate network configuration.

1. Key Features

• Model: PBS31010

• Product family: Neutrino430

• Device type: Indoor LTE TDD eNodeB base station

• LTE standard: 3GPP Release 15

• Frequency range: 3550–3700 MHz in the manufacturer's datasheet

• LTE band: Band 48 in the standard model designation; the datasheet also references customized Band 42/43/48 versions

• Radio configuration: 4 × 250 mW (24 dBm)

• Integrated antenna: 3 dBi omnidirectional antenna

• Backhaul: One Gigabit Ethernet port and one optical interface

• GPS: External GPS antenna connection

• Management: Local/remote web management and TR-069

• Installation: Ceiling or wall mounting

2. Technical Specifications

3. Applications / Use Cases

• Indoor LTE access networks

• Enterprise and private LTE deployments

• Fixed wireless broadband infrastructure

• Small-cell cellular deployments in offices and business facilities

• LTE networks using authorized Band 48 spectrum

• Deployments requiring Ethernet or optical backhaul

• Networks using compatible BaiCells HaloB embedded EPC functionality

4. Compatibility

The PBS31010 requires a compatible LTE network environment.

• Radio spectrum: The standard model supports LTE TDD Band 48, 3550–3700 MHz.

• Core network: Compatible LTE EPC infrastructure is required unless an appropriate embedded EPC configuration is used.

• Backhaul: Connect through the Gigabit Ethernet or optical SFP interface.

• Power: Use a compatible 12 V DC, 2 A supply or IEEE 802.3at PoE+ equipment.

• Synchronization: GPS or IEEE 1588v2 synchronization is supported.

• Carrier aggregation: Requires compatible software, spectrum, configuration, and user equipment.

• Regional variants: The manufacturer allows customized frequency-band versions. Confirm the exact model variant before assuming Band 42 or Band 43 compatibility.

A standard consumer LTE modem or SIM card alone is not sufficient to operate this base station.

5. Frequently Asked Questions

Q1. What is the BaiCells PBS31010?

It is the Neutrino430 indoor LTE TDD eNodeB base station designed for compatible LTE network deployments.

Q2. Which LTE band does the standard PBS31010 support?

The standard model supports LTE TDD Band 48 in the 3550–3700 MHz frequency range.

Q3. Does the PBS31010 support carrier aggregation?

Yes. The Neutrino430 supports two-component-carrier aggregation and dual-carrier operation, subject to compatible configuration and spectrum availability.

Q4. What network interfaces does it have?

It has one Gigabit Ethernet RJ45 interface and one optical SFP interface.

Q5. How is the PBS31010 powered?

It supports 12 V DC, 2 A power or compatible IEEE 802.3at PoE+ power equipment.

Q6. Does it include an antenna?

Yes. The datasheet specifies an integrated 3 dBi omnidirectional antenna. A separate external GPS antenna connection is also provided.

Q7. Can it operate without a separate LTE core network?

The manufacturer documents HaloB embedded EPC functionality. Whether this meets a particular deployment's requirements depends on the software, licensing, and network configuration.

Q8. Is it a Wi-Fi access point?

No. The PBS31010 is an LTE cellular base station, not a standard Wi-Fi access point or consumer router.
