Description

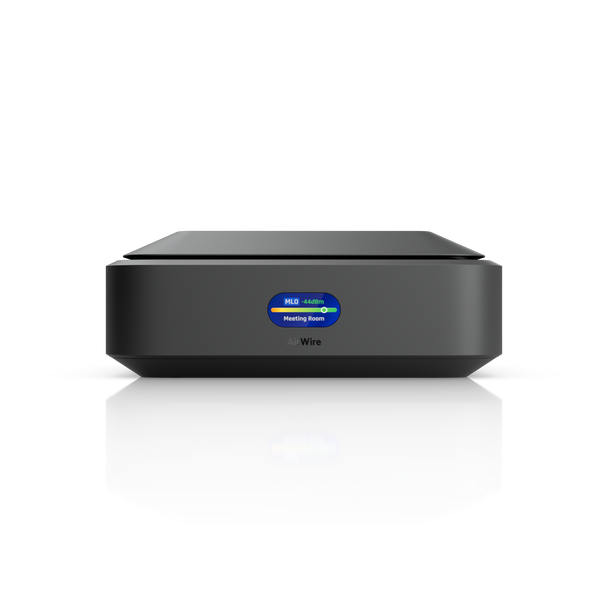

High-performance WiFi 7 client adapter with STR MLO, enabling simultaneous full-duplex links for ultra-low latency, extended range, and true multi-gigabit real-world speeds.
Dimensions
117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
4
Uplink
WiFi
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
5.8 Gbps (BW320)
5 GHz
4.3 Gbps (BW240)
Antenna Gain
6 GHz
11 dBi
5 GHz
11 dBi
Max. TX Power
6 GHz
20 dBm
5 GHz
25 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing
✓
Real-Time Spectral Analysis
✓
Max. Power Consumption
18W
Power Supply
USB PD 5/9/12V, 15W (Standard mode) USB PD 5/9/12V, 20W (Enhanced mode)
Networking Interface
(1) 5 GbE port (USB3.2 Gen2)
Weight
544 g (1.2 lb)
Management
USB-C
Enclosure Material
Polycarbonate
Display
0.96" status display
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 10.2 and later
