Description

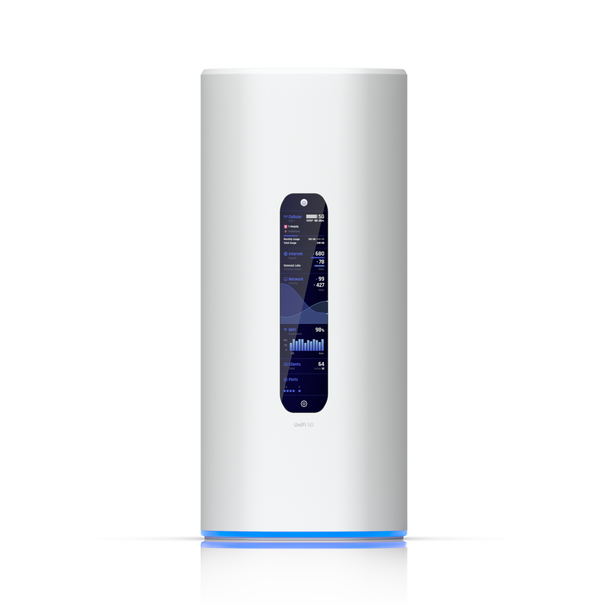

Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.
Please check the carrier SIM compatibility before purchase
Dimensions
110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
30+
Managed Cameras
(5) HD (2) 2K (1) 4K
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 10G SFP+ (1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45
4 (1 PoE) (2.5G/1G/100M)
10G SFP+
1 (10G/1G)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Desktop
Coverage Area
160 m² (1,750 ft²)
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
20,000+ with CyberSecure
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓
Site-to-Site VPN Single Tunnel Throughput
Site Magic
20
VPN Client Single Tunnel Throughput
WireGuard
8
OpenVPN
8
Multi-WAN Load Balancing
✓
Dynamic Routing
OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
2,000
Virtual Network Override
✓
All Traffic Flows
—
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz
5.7 Gbps
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain
6 GHz
8 dBi
5 GHz
5 dBi
2.4 GHz
4 dBi
Max. TX Power
6 GHz
22 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
5G NR
Category
5G NR Sub-6
Frequency Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX Power
HPUE power class 2: 26 dBm
4G LTE
Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power
HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands
B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA
Downlink 3.4 Gbps Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps Uplink 210 Mbps
Antenna Gain
617-960 MHz: 3 dBi 1710-2700 MHz: 7 dBi 3300-5000 MHz: 8 dBi 5150~5925 MHz: 8 dBi
SIM
(2) Nano SIM (1) Nano-SIM or eSIM
NVR Storage
Pre-installed 64 GB microSD for NVR
Expansion Slot
MicroSD Card
PoE Budget
15.4W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V
Max. Power Consumption
34.5W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100–240V AC
Heat Dissipation
115 BTU/hr (Excluding PoE output)
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
1.4 kg (3.1 lb)
Enclosure Material
Polycarbonate
LCM Display
4.7" touchscreen
Management
Ethernet Bluetooth
LEDs
Ethernet
✓
SFP+
✓
System
✓
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Application Requirements
Mobile App
UniFi iOS™: Version 10.33.0 and later UniFi Android™: Version 10.36.1 and later
Related Products
Related Products
Please contact for availability
Ubiquiti U5G-Max UniFi 5G Max
Ubiquiti
MSRP:
$399.00
$383.61
A high-performance 5G (3.4 Gbps) modem for any UniFi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover. Certified with...
Please contact for availability
Ubiquiti U5G-Max-Outdoor UniFi 5G Max Outdoor
Ubiquiti
MSRP:
$399.00
$380.12
A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, certified with AT&T, T-Mobile*, and Verizon**, designed for outdoor use with directional antennas, remote SIM***, and...
Please contact for availability
Ubiquiti UDM-Pro-Max Dream Machine Pro Max
Ubiquiti
MSRP:
$615.00
$611.00
10 Gbps Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.
Enhanced computing power and memory for 2x the UniFi
Ubiquiti UDR7-US UniFi Dream Router 7 US
Ubiquiti
MSRP:
$295.00
$279.31
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Overview
Dimensions
Ø110 x 184.1 mm (Ø4.3 x 7.3")
<
Please contact for availability

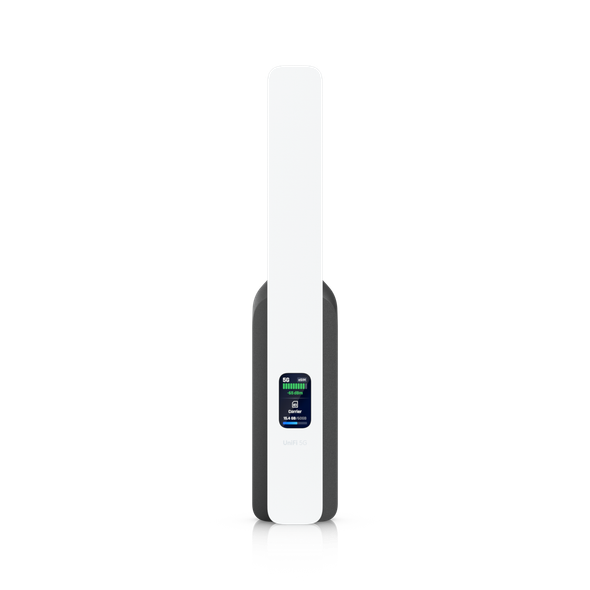

Ubiquiti UniFi 5G Backup
