Ubiquiti

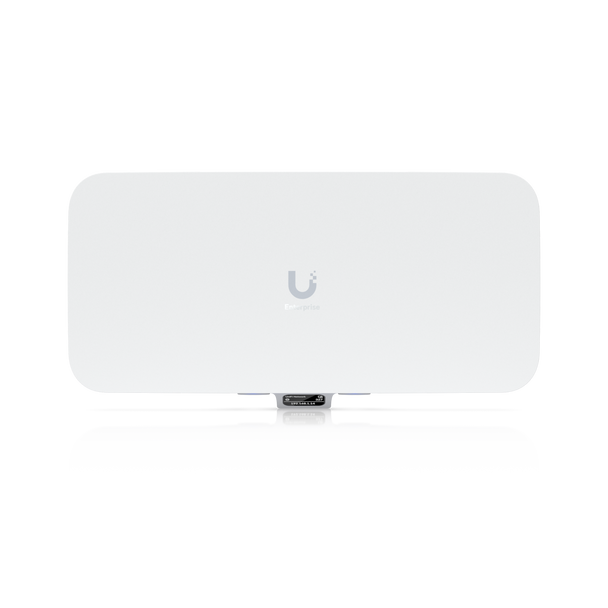

Ubiquiti Enterprise E7 Audience Indoor
- SKU:
- E7-AUDIENCE-INDOOR-US
- MPN:
- E7-AUDIENCE-INDOOR-US
- Availability:
- Approval Required to Purchase
Frequently bought together:
Description
Enterprise-grade access point designed for high-density environments with 12-stream WiFi 7 performance, expanded 6 GHz indoor spectrum capability, a 10 GbE uplink, and a redundant GbE port for high availability.
Dimensions
Device: 474.1 x 239.4 x 42.2 mm (18.7 x 9.4 x 1.7") Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9")
WiFi Standard
WiFi 7
Spatial Streams
12
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
1500+
Uplink
10 GbE 1 GbE
Mounting
Wall, Pole (Mounts Included) VESA (Optional)
Power Method
PoE++
MIMO
6 GHz
Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
Low Band: 11.5 Gbps (BW320) High Band: 11.5 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
Antenna Gain
6 GHz
Directional internal: 15 dBi, 50° x 50° Directional internal: 11 dBi, 90° x 90°
5 GHz
Directional internal: 15 dBi, 50° x 50° Directional internal: 11 dBi, 90° x 90°
Max. TX Power
6 GHz
Low Band: 30 dBm (36 dBm EIRP) High Band: 30 dBm (36 dBm EIRP)
5 GHz
30 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Zero-Wait DFS
✓
Advanced Radio Management
✓
Real-Time Spectral Analysis
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Max. Power Consumption
51W
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 10 GbE RJ45 port (1) GbE RJ45 port
PRISM™ RF Filtering
✓
Weight
Device: 3.2 kg (7.1 lb) With mount: 4.2 kg (9.3 lb)
Pole Mount Diameter
1–3" (25–76 mm)
Antennas
(1) Internal with directional patterns
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Aluminum alloy
LEDs
System
R/G/B
Channel Bandwidth
VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
✓
Certifications
FCC, IC
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 10.0.162 and later
Mobile App
iOS™ version 10.30.2 and later Android™ version 10.31.4 and later
