Ubiquiti

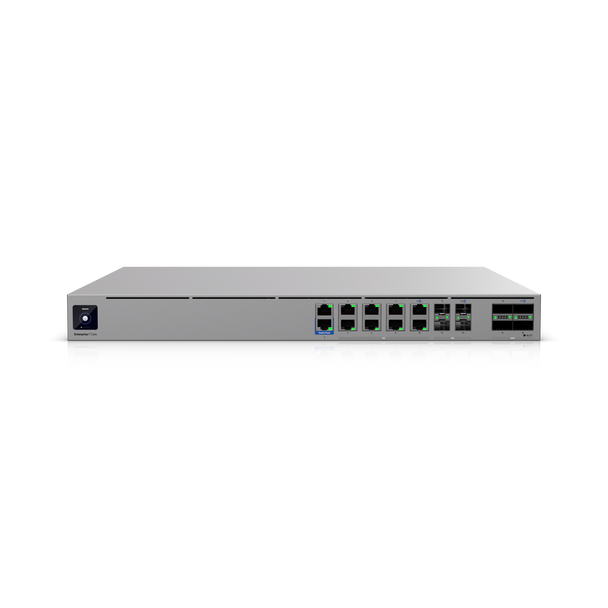

Ubiquiti Enterprise Firewall Core
- SKU:
- EF-CORE
- MPN:
- EF-CORE
- Availability:
- Approval Required to Purchase
Frequently bought together:
Description
Enterprise-class 100 Gbps Cloud Gateway delivering 79 Gbps IDS/IPS, 22,500+ client capacity, and 5,000+ concurrent IPsec tunnels.
Dimensions
442.4 x 43.7 x 400 mm (17.4 x 1.7 x 15.8")
UniFi Application Suite
Network
✓
Managed UniFi Devices
2,250+
Simultaneous Users Connected
22,500+
Max. WAN Port Count
8
Default WAN Ports
(1) 100G QSFP28 (1) 25G SFP28 (1) 10 GbE RJ45
Port Layout
1 GbE RJ45
2 (1G/100M/10M)
10 GbE RJ45
8 (10G/5G/2.5G/1G/100M)
25G SFP28
4 (25G/10G/1G)
100G QSFP28
4 (100G/40G)
MGMT
1 (1G/100M/10M)
Console
1
IDS/IPS Throughput
79 Gbps
Capacity
SSL/TLS Inspection Concurrent Sessions
10,000
Concurrent Sessions
10 Million
New Sessions / Second
120,000
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover (2) Hot-Swappable PSUs
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
SSL Inspection & URL Filtering
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
95,000+ with CyberSecure Enterprise
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓
Multi-WAN Load Balancing
✓
Shadow Mode (VRRP) High Availability
✓
LACP Port Aggregation
✓
Dynamic Routing
OSPF
✓
BGP
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
130,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
All Traffic Flows
✓
Max. Power Consumption
171W
Power Method
Universal AC input, 100–240V AC, 7.5A Max., 50/60 Hz
Power Supply
(2) Hot-Swappable AC/DC 550W PSU
Supported Voltage Range
100–240V AC
Heat Dissipation
585 BTU/hr
Processor
24-core ARM® v9 at 2.5 GHz
System Memory
32 GB
On-board Storage
Integrated 128 GB SSD
Weight
7.85 kg (17.31 lb)
Enclosure Material
Aluminium CNC, SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet Bluetooth
LEDs
Ethernet
✓
SFP28
✓
QSFP28
✓
Swappable Fan
✓
CRPS
✓
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
Application Requirements
Mobile App
UniFi iOS™: Version 10.35.0 and later UniFi Android™: Version 10.38.1 and later
