Description

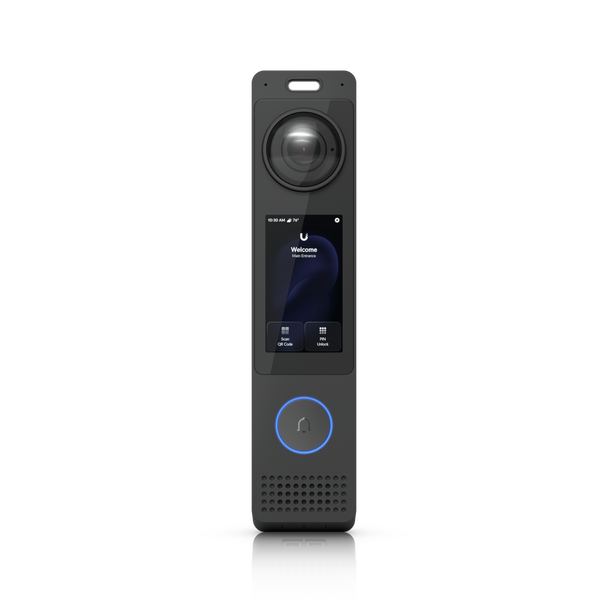

An intelligent door entry system with native UniFi Protect and UniFi Access integration with a 12MP camera, two-way audio, and a 3" touch display.
Dimensions
220 x 49.3 x 29.6 mm (8.7 x 1.9 x 1.2")
Integrated Camera
✓
IR Night Vision
5 m (16 ft)
Resolution
Main camera: 12MP Package camera: 8MP
UniFi Application Suite
Protect Access
Face Recognition
✓
NFC Card & Keyfob Access
✓
PIN Access
✓
Apple/Google Wallet
✓
Mobile Unlock
✓
Two-Way Intercom & Doorbell Access
✓
Weatherproofing
IP55
Smart Detections (People, Vehicles, Animals)
✓
Tamper Resistance
IK07 LCM IK04
Audio
Two-way audio
NDAA Compliant
✓
Weight
360 g (12.7 oz)
Enclosure Material
Aluminum
Mount Material
Wall mount: Stainless steel Gangbox mount plate: SGCC steel Gangbox mount cover: Polycarbonate Wedge mount: Aluminum
Mounting
Wall mount, Gangbox mount plate, 20° wedge mount (Included) Junction box (Optional)
Networking Interface
GbE RJ45 port
Connectivity
BLE 4.1 NFC
Power Method
PoE+
Max. Power Consumption
18W
Supported Voltage Range
42—57V DC
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate
Main camera: 12MP, 20 FPS or 8MP, 30 FPS Package camera: 3 FPS
Optics
Resolution
Main camera: 12MP, 3024 x 4096 (3:4) or 8MP, 2160 x 3840 (9:16) Package camera: 8MP, 3264 x 2448 (4:3)
Field of View
Main camera: H: 100°, V: 136.3°, D: 176.4° (12MP) H: 70.9°, V: 127.5°, D: 147.4° (8MP) Package camera: H: 66°, V: 51.7°, D: 78°
Sensor
Main camera: 12MP CMOS Package camera: 8MP CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Display
Size
75 mm (3") diagonal
Screen Technology
Capacitive multi-touch
Luminance
Max. 1000 nits (Typical)
Screen Orientation
Portrait
Resolution
480 x 854 px
LEDs
R/G/B/W/Amber Learn More
Button
(1) Ring button (1) Factory reset (1) Tamper switch
Processor
Quad-core Arm® Cortex®-A53 based chip
Certifications
CE, FCC, IC
Ambient Operating Temperature
Device: -30 to 50° C (-22 to 122° F) Display: -25 to 50° C (-13 to 122° F)
Ambient Operating Humidity
5 to 90% noncondensing
