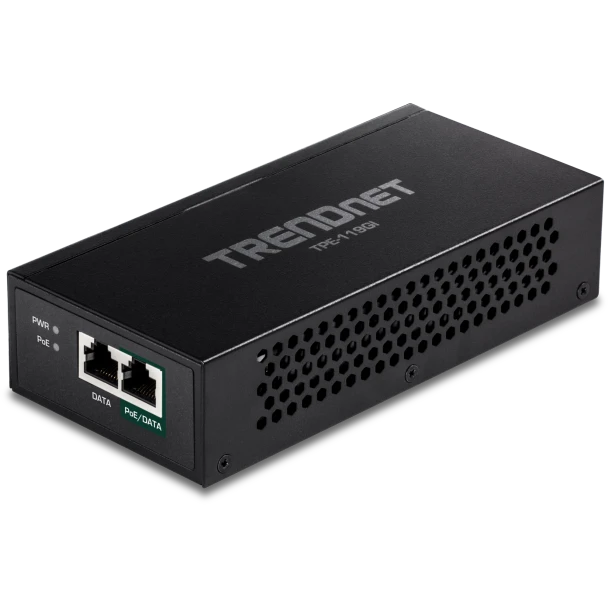

The TRENDnet TPE-119GI is a Gigabit PoE++ injector that converts a standard non-PoE Gigabit Ethernet port into a high-power PoE++ connection. Supporting IEEE 802.3af, 802.3at, and 802.3bt, it automatically delivers up to 15.4W PoE, 30W PoE+, or 95W PoE++ power to compatible devices. With an integrated power supply, auto-sensing technology, Gigabit Ethernet connectivity, and up to 100m (328 ft.) PoE transmission distance, the TPE-119GI is ideal for wireless access points, IP cameras, VoIP phones, IPTV equipment, access control systems, and other PoE-powered devices.

Key Features

• Gigabit 802.3bt PoE++ injector
• Converts a non-PoE Gigabit Ethernet port into a PoE++ port
• 1 x Gigabit Data In port
• 1 x Gigabit PoE++ Out port
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Supports IEEE 802.3bt PoE++
• Up to 95W PoE++ output
• Up to 30W PoE+ output
• Up to 15.4W PoE output
• Auto-sensing technology automatically delivers the required PoE power
• Supports 4-pair PoE
• Network and power PoE devices up to 100m (328 ft.) away
• Integrated internal power supply
• No software configuration required
• LED indicators for PoE connectivity
• Wall-mountable design
• Sturdy metal enclosure
• 10/100/1000Mbps Gigabit Ethernet
• NDAA and TAA compliant for the U.S. and Canada
• 3-year warranty

Product Description

High-Power Gigabit PoE++ Connectivity

The TRENDnet TPE-119GI is an IEEE 802.3bt Gigabit PoE++ injector designed to add Power over Ethernet capability to a standard non-PoE Gigabit Ethernet connection.

The injector combines network data and electrical power into a single Ethernet connection, allowing compatible PoE devices to be installed without a separate power connection at the device location.

Connect the TPE-119GI between a non-PoE network switch and a compatible PoE-powered device to deliver both Gigabit Ethernet data and power over standard Ethernet cabling.

Up to 95W PoE++ Power

The TPE-119GI supports three major PoE standards:

• IEEE 802.3af PoE: Up to 15.4W
• IEEE 802.3at PoE+: Up to 30W
• IEEE 802.3bt PoE++: Up to 95W

Auto-sensing technology determines the appropriate power level required by the connected compatible device.

This high-power output makes the injector suitable for modern PoE++ equipment requiring more power than traditional PoE and PoE+ solutions can provide.

Convert a Non-PoE Port to PoE++

The TPE-119GI allows organizations to add PoE power without replacing an existing non-PoE Gigabit Ethernet switch.

Connect:

Non-PoE Network Switch → TPE-119GI → PoE/PoE+/PoE++ Device

This can reduce equipment and installation costs when only individual devices require PoE power.

Gigabit Ethernet Performance

The injector provides one Gigabit Ethernet data input and one Gigabit PoE++ output.

The Ethernet interface supports:

• 10Mbps
• 100Mbps
• 1000Mbps

The Gigabit interface provides up to 2000Mbps full-duplex data transfer.

100-Meter PoE Transmission Distance

The TPE-119GI can provide a PoE network connection up to 100 meters (328 feet) from the injector when used with appropriate Ethernet cabling and compatible equipment.

This allows PoE devices to be positioned away from the network switch while receiving both power and data through one Ethernet cable.

Easy Plug-and-Play Installation

The TPE-119GI requires no software configuration.

Simply connect the network switch to the injector's Gigabit Data In port, connect the PoE device to the Gigabit PoE++ Out port, and connect the injector to AC power.

LED indicators provide visual confirmation of PoE connectivity.

Integrated Power Supply

The TPE-119GI features an integrated power supply and accepts 100–240V AC, 50/60Hz input power.

This eliminates the need for a separate external power brick and simplifies installation.

Durable Wall-Mount Design

The injector features a sturdy metal enclosure and wall-mountable design, making it suitable for network closets, offices, surveillance installations, access-control deployments, and other professional networking environments.

Technical Specifications

Specifications are based on TRENDnet's current V2 documentation.

Supported Standards

• IEEE 802.3 Ethernet
• IEEE 802.3u Fast Ethernet
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3bt PoE++

Compatible PoE Devices

The TPE-119GI can be used to power compatible:

• Wi-Fi 6 / Wi-Fi 6E access points
• Wireless access points
• IP security cameras
• PTZ IP cameras
• VoIP phones
• Video conferencing equipment
• IPTV decoders
• Access control devices
• IoT equipment
• High-power network devices
• Other IEEE 802.3af/at/bt-compatible devices

Ideal Applications

• Business networks
• Wireless access point installations
• IP surveillance systems
• Security camera deployments
• VoIP installations
• Access control systems
• Retail networks
• Hospitality networks
• Commercial buildings
• Office networks
• Network infrastructure upgrades
• High-power PoE device installations
• Locations where replacing an existing switch is undesirable

What's in the Box

• TRENDnet TPE-119GI Gigabit PoE++ Injector
• Quick Installation Guide
• Power Cord

Frequently Asked Questions

1. What is the TRENDnet TPE-119GI?

The TPE-119GI is a Gigabit PoE++ injector that adds PoE power to a standard non-PoE Gigabit Ethernet connection.

2. How much power does the TPE-119GI provide?

It provides up to 95W of PoE++ power, up to 30W of PoE+ power, or up to 15.4W of standard PoE power depending on the connected compatible device and PoE standard.

3. Does the TPE-119GI support IEEE 802.3bt?

Yes. The TPE-119GI supports IEEE 802.3bt PoE++.

4. Can it power a PoE+ device?

Yes. The injector automatically supports compatible IEEE 802.3af and 802.3at devices.

5. Can the TPE-119GI power a 95W PoE++ device?

Yes, it can provide up to 95W PoE++ output to a compatible IEEE 802.3bt device.

6. How many Ethernet ports does it have?

It has two Ethernet ports:

• 1 x Gigabit Data In
• 1 x Gigabit PoE++ Out

7. Does the TPE-119GI require a PoE switch?

No. It can be connected to a standard non-PoE Gigabit Ethernet switch. The injector adds power to the Ethernet connection.

8. Does it require an external power adapter?

No. The TPE-119GI has an integrated power supply and connects directly to AC power.

9. What is the maximum PoE distance?

The injector supports a PoE network connection up to 100 meters (328 feet) using suitable Ethernet cabling.

10. Does the TPE-119GI support Gigabit Ethernet?

Yes. Both the data input and PoE output support Gigabit Ethernet.

11. Does it require software configuration?

No. TRENDnet describes the injector as plug-and-play with no configuration required.

12. Is the TPE-119GI wall mountable?

Yes. The injector features a wall-mount design and metal enclosure.

13. Is the TPE-119GI NDAA compliant?

Yes. TRENDnet lists the TPE-119GI as NDAA/TAA compliant for the U.S. and Canada.

14. What voltage does the TPE-119GI accept?

The V2 model accepts 100–240V AC, 50/60Hz input.

15. Is the power cord included?

Yes. A power cord is included in the standard package.

16. Is the TPE-119GI suitable for Wi-Fi access points?

Yes. It is designed to power compatible PoE, PoE+, and PoE++ devices including wireless access points.

17. Is the TPE-119GI a PoE switch?

No. It is a PoE++ injector with one data input and one powered Gigabit Ethernet output. It does not provide multiple switch ports.
