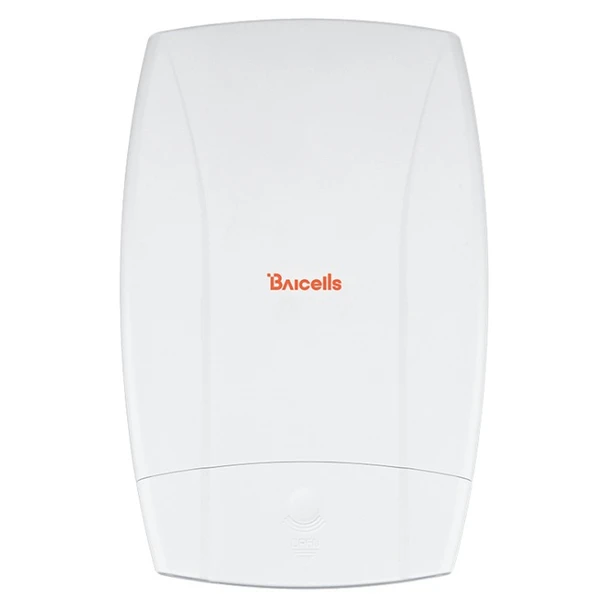

BaiCells EG7035L-M11 Atom OD04 Outdoor LTE Cat 4 CPE, 3.5 GHz, 14 dBi

The BaiCells EG7035L-M11 Atom OD04 is an outdoor LTE Category 4 CPE designed to deliver fixed wireless broadband connectivity. It receives compatible LTE signals and provides network connectivity to connected wired and wireless devices.

The EG7035L-M11 is the 3.5 GHz variant of the Atom OD04 low-gain CPE family. It incorporates an integrated bipolar directional antenna with a documented gain of 14 dBi and supports an LTE TDD configuration.

LTE Performance

The device complies with 3GPP Release 9 LTE Category 4 standards. BaiCells' low-gain CPE product information lists peak data rates of up to 100 Mbps downlink and 10 Mbps uplink under a 2:7 TDD configuration.

The exact supported frequency bands should be checked against the unit's regional configuration. The exact-model 2017 user manual specifies Band 48, while BaiCells' 2021 family datasheet identifies the M11 as a 3.5 GHz Band 42/43/48 version.

Integrated Directional Antenna

The EG7035L-M11 features an integrated bipolar directional LTE antenna designed for outdoor fixed wireless installations.

• Antenna type: Internal directional.

• Antenna configuration: 1T2R.

• Maximum antenna gain: 14 dBi.

• Maximum transmit power: 23 ±2 dBm.

The directional antenna is intended for installations where the CPE can be aligned toward the serving LTE base station.

Ethernet and Power

The exact-model user manual documents one RJ45 Ethernet LAN port supporting 10/100 Mbps auto-sensing and auto-MDI/MDIX. The Ethernet interface also supports PoE.

The installation manual identifies a PoE power adapter connection. A separate regulatory test report for the model family documents a 24 VDC, 0.5 A adapter output; confirm the supplied adapter's rating before ordering replacement power accessories.

Network Management

The EG7035L-M11 provides web-based local device configuration and management. Its documented capabilities include:

• NAT and Bridge modes.

• SIM PIN management and SIM lock.

• APN configuration.

• Automatic and manual network connection.

• Full-band scanning and cell locking.

• VPN passthrough and PPTP tunnel mode.

• Port forwarding and port triggering.

• DMZ and UPnP.

• TR-069 device management.

• Port mirroring and Syslog.

• Ping and traceroute diagnostics.

• Local and firmware-over-the-air upgrades.

Outdoor Installation

The CPE supports pole and wall mounting. The manufacturer manual also specifies grounding and the use of outdoor shielded CAT5E Ethernet cable for installation.

The device is intended for compatible outdoor LTE broadband deployments. Confirm the applicable environmental protection rating for the exact hardware revision before publishing an IP rating.

1. Technical Specifications

2. Applications / Use Cases

• Fixed wireless broadband access.

• Outdoor LTE connectivity.

• Wireless Internet Service Provider (WISP) deployments.

• Residential and business broadband access.

• Remote-site network connectivity.

• Outdoor customer premises installations.

• Compatible LTE TDD networks using the supported regional frequency configuration.

3. Compatibility

The BaiCells EG7035L-M11 is intended for compatible LTE TDD networks.

Before purchasing, verify:

• The LTE base station supports the frequency bands configured on the specific CPE.

• The operator supports the appropriate 3.5 GHz LTE TDD spectrum.

• The SIM card is provisioned for the intended LTE network.

• The power arrangement is compatible with the device's PoE requirements.

• The connected Ethernet equipment supports the 10/100 Mbps interface.

Important: Do not assume every EG7035L-M11 unit supports every band listed for the Atom OD04 family. The exact-model manual documents Band 48, while the newer family datasheet lists Bands 42/43/48 for the M11 variant. Confirm the regional hardware and firmware configuration before promising compatibility.

4. Frequently Asked Questions

Q1. What is the BaiCells EG7035L-M11?

The EG7035L-M11 is an Atom OD04 outdoor LTE Category 4 CPE designed for fixed wireless broadband connectivity.

Q2. What frequency does the EG7035L-M11 operate on?

It is identified as the 3.5 GHz variant. The exact-model manual specifies LTE TDD Band 48, while newer BaiCells family documentation lists Bands 42, 43, and 48 for the M11 variant.

Q3. What is the maximum data rate?

BaiCells lists peak LTE rates of up to 100 Mbps download and 10 Mbps upload under a 2:7 TDD configuration.

Q4. Does the EG7035L-M11 have a directional antenna?

Yes. It has an integrated bipolar directional antenna with a documented maximum gain of 14 dBi and a 1T2R configuration.

Q5. Does this model support Gigabit Ethernet?

No. The exact-model user manual specifies one 10/100 Mbps RJ45 Ethernet interface.

Q6. Does the EG7035L-M11 support PoE?

Yes. The device supports Power over Ethernet. Verify the adapter output rating and included accessories for the particular unit.

Q7. Can the device be installed outdoors?

Yes. It is designed as an outdoor CPE and supports pole or wall mounting. Confirm the applicable IP rating for the exact hardware revision before installation in a specific environment.

Q8. How is the EG7035L-M11 different from the EG7035E-M11?

Both are 3.5 GHz Atom OD04 Cat 4 outdoor CPE models. The EG7035L-M11 is the low-gain version with a 14 dBi antenna, while the EG7035E-M11 is the high-gain version with a 19.5 dBi antenna.
