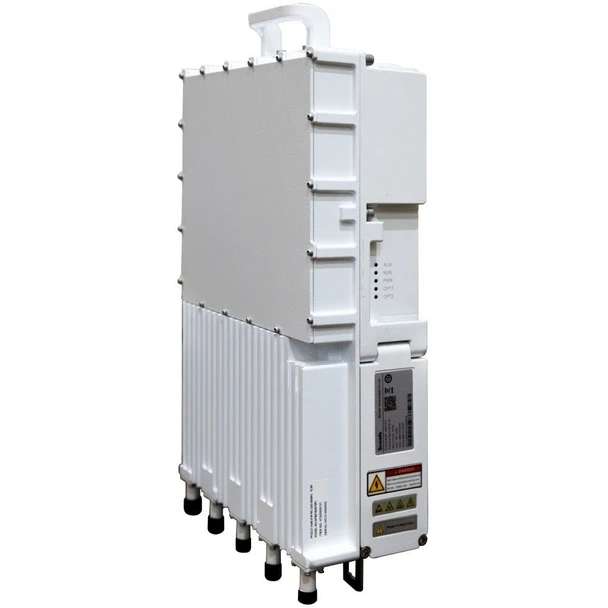

BaiCells SBS71010 Nova846 Outdoor LTE TDD eNodeB Base Station, Band 48, 8×5 W

The BaiCells SBS71010 Nova846 is an outdoor LTE TDD eNodeB designed for wireless broadband and private LTE network deployments. Its 8T8R radio configuration uses eight 5 W transmit channels and supports Carrier Aggregation (CA) or Dual Carrier (DC) operation.

The standard SBS71010 model is configured for LTE TDD Band 48, covering 3550–3700 MHz. It supports LTE 3GPP Release 15, channel bandwidths of 5, 10, 15, and 20 MHz per carrier, and up to 40 MHz of aggregated bandwidth in CA mode.

For network connectivity, the base station provides one RJ-45 Gigabit Ethernet interface and one optical SFP interface. It uses a nominal -48 V DC power supply, supports GPS synchronization, and connects to external high-gain LTE and GPS antennas. Its IP66-rated enclosure is designed for outdoor installations, including pole or wall mounting.

The Nova846 supports local and remote web management, Self-Organizing Network (SON) capabilities, and compatibility with standard LTE Evolved Packet Core (EPC) systems. BaiCells also documents HaloB as an embedded EPC option.

Important: The SBS71010 is an LTE base station, not a consumer Wi-Fi router. Confirm the frequency configuration, compatible antennas, core-network requirements, and power equipment before deployment.

1. Key Features

• Outdoor LTE TDD eNodeB base station

• BaiCells Nova846 product family

• LTE 3GPP Release 15

• Band 48 frequency range: 3550–3700 MHz

• 8T8R radio configuration

• Eight 5 W transmit channels

• Carrier Aggregation (CA) and Dual Carrier (DC) operation

• Channel bandwidths of 5, 10, 15, and 20 MHz per carrier

• Up to 40 MHz aggregated bandwidth in CA mode

• Downlink MIMO support

• External high-gain LTE antenna connections

• GPS synchronization

• One RJ-45 Gigabit Ethernet interface and one optical SFP interface

• Nominal -48 V DC power input

• IP66-rated outdoor enclosure

• Pole or wall mounting

2. Technical Specifications

3. Applications / Use Cases

• Outdoor private LTE networks

• Public wireless broadband infrastructure

• LTE coverage expansion in targeted service areas

• Enterprise and industrial wireless connectivity

• Fixed wireless access networks using compatible LTE customer-premises equipment

• Deployments requiring Carrier Aggregation or separate Dual Carrier cells

Actual coverage and throughput depend on antenna selection, spectrum configuration, interference, installation conditions, and connected subscriber equipment.

4. Compatibility

Before purchasing or installing the SBS71010, confirm:

• Frequency: The standard model supports Band 48, 3550–3700 MHz.

• Antennas: Compatible external LTE antennas and RF cables are required.

• Core network: Verify compatibility with the planned LTE EPC or HaloB configuration.

• Subscriber equipment: CPEs and other LTE devices must support Band 48 and the deployed network configuration.

• Power: Use a compatible DC power source meeting the manufacturer's input requirements.

• Backhaul: Provide suitable Gigabit Ethernet or optical-fiber connectivity, including a compatible SFP module where required.

• Installation: Follow the manufacturer's mounting, grounding, and lightning-protection guidance.

• Regulatory approval: Confirm that the equipment and intended spectrum use are authorized in the deployment region.

5. Frequently Asked Questions

Q1. What is the BaiCells SBS71010?
It is the Nova846 outdoor LTE TDD eNodeB base station configured for Band 48.

Q2. Which frequency range does it support?
The standard SBS71010 supports LTE TDD Band 48, covering 3550–3700 MHz.

Q3. Does it have a built-in antenna?
No. BaiCells specifies external high-gain LTE antenna connections using N-Type connectors.

Q4. Does it support Carrier Aggregation?
Yes. It supports Carrier Aggregation with up to 40 MHz of aggregated bandwidth, depending on configuration.

Q5. What power supply does it require?
The installation guide specifies -40 V to -57 V DC, with a nominal -48 V DC input. Confirm the required power equipment and whether it is included.

Q6. Is it suitable for outdoor installation?
Yes. The manufacturer lists an IP66 ingress protection rating and an operating temperature range of -40°C to 55°C.

Q7. What are its dimensions and weight?
The datasheet lists dimensions of 432 × 280 × 118 mm. Weight is 12 kg without the bracket or 12.6 kg with the pre-installed bracket. These are product measurements, not shipping measurements.

Q8. What warranty does it have?
BaiCells product documentation lists a standard one-year warranty, with extended warranty options available. Confirm current terms for your inventory.
