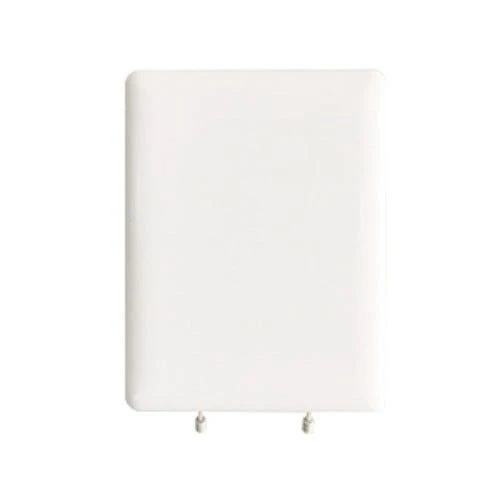

BaiCells U4G-UE1000 Spectra LTE-U Outdoor CPE, Cat 4, Gigabit Ethernet, PoE

The BaiCells U4G-UE1000 is a Spectra LTE-U outdoor customer premises equipment (CPE) device developed for fixed wireless broadband applications. It receives LTE-FDD signals within its specified frequency ranges and provides local network connectivity through its Ethernet interface and supported networking functions.

The U4G-UE1000 is designed for deployments using a compatible BaiCells LTE-U network. Its integrated directional antenna and outdoor enclosure support installation at an appropriate customer premises location.

LTE Performance and Connectivity

The U4G-UE1000 uses LTE Cat 4 technology compliant with 3GPP Release 9. Its published peak rates are up to 150 Mbps downstream and 75 Mbps upstream at a 20 MHz channel bandwidth. Actual throughput depends on the network configuration, signal conditions, interference, and available capacity.

The device operates using specified LTE-FDD frequency ranges:

• Uplink: 5150–5250 MHz

• Downlink: 5725–5925 MHz

These are model-specific frequency ranges, not a claim of universal compatibility with standard cellular LTE bands or every 5 GHz wireless network. Deployment requires a compatible LTE-U base station and matching network configuration.

Ethernet Interface and Power

One Gigabit Ethernet RJ45 port supports 10/100/1000 Mbps connectivity. The interface provides a wired connection to compatible local network equipment.

The U4G-UE1000 supports PoE using the documented IEEE 802.3at/af standards. Confirm the power source and installation requirements against the applicable product documentation before deployment.

Antenna and Outdoor Design

The device incorporates an internal directional antenna with a documented gain of 14 dBi ±1 dB and dual-polarized antenna paths. Its IP65-rated enclosure is designed for outdoor installation in supported environmental conditions.

The published dimensions are 205 × 155 × 70 mm, and the documented device weight is approximately 1.5 kg. Pole or wall mounting is described in the product documentation; mounting hardware included in a particular package must be confirmed separately.

Network Management and Security

The U4G-UE1000 supports local and remote web-based management and TR-069 network management. Documented network functions include NAT, routing, bridging, SIM/PIN management, network selection controls, and firewall-related configuration.

Available functions can depend on the installed firmware and network configuration. Confirm the required management integration and configuration before purchasing for a managed deployment.

Deployment Considerations

The BaiCells U4G-UE1000 is intended for compatible LTE-U fixed wireless access environments. Before ordering, verify that the deployment's base station, uplink and downlink frequencies, SIM configuration, power source, and regional regulatory requirements match this specific model.

1. Key Features

• LTE Cat 4: Supports 3GPP Release 9 LTE technology.

• Unlicensed-frequency operation: Supports the model's specified LTE-FDD uplink and downlink frequency ranges.

• Peak data rates: Up to 150 Mbps downlink and 75 Mbps uplink at a 20 MHz channel bandwidth, as specified in the product datasheet.

• Gigabit Ethernet: One 10/100/1000 Mbps RJ45 Ethernet interface.

• Integrated directional antenna: Built-in dual-polarized antenna with a documented gain of 14 dBi ±1 dB.

• PoE support: Supports IEEE 802.3at/af power delivery as documented for the model.

• Remote management: Supports local and remote web-based management and TR-069 network management.

• Network configuration: Supports routing, bridging, and NAT operating modes.

• Network security controls: Includes documented SIM/PIN management and firewall-related features.

• Outdoor enclosure: IP65-rated enclosure, with an operating temperature range of -40°C to 55°C.

2. Technical Specifications

3. Applications / Use Cases

• Fixed wireless broadband access for homes, offices, and business premises.

• Outdoor customer-premises connectivity in compatible LTE-U deployments.

• Broadband delivery by wireless internet service providers operating compatible BaiCells LTE-U infrastructure.

• Wired network access for computers and other Ethernet-enabled devices.

• Outdoor connectivity projects requiring an integrated directional antenna.

• Business or remote-site connectivity where the specified frequency configuration and LTE-U network are supported.

4. Compatibility

The BaiCells U4G-UE1000 is intended for use with a compatible LTE-U network operating within the model's specified uplink and downlink frequency ranges.

Before deployment, verify:

• Base station: Compatibility with the specific BaiCells LTE-U base station and its software/network configuration.

• Frequency plan: Support for uplink frequencies of 5150–5250 MHz and downlink frequencies of 5725–5925 MHz, as applicable to the deployed configuration.

• SIM provisioning: A compatible USIM and appropriate network provisioning.

• Ethernet equipment: Devices with a compatible Ethernet interface and network configuration.

• Power source: A compatible PoE source and any required power accessories.

• Regional compliance: The exact unit's regulatory approvals and permitted operating frequencies for the deployment location.

The device should not be assumed to work with ordinary Wi-Fi access points, standard cellular LTE networks, or unrelated 5 GHz radios simply because some operating frequencies overlap. Confirm end-to-end compatibility before ordering.

5. Frequently Asked Questions

Q1. What is the BaiCells U4G-UE1000?

The U4G-UE1000 is an outdoor LTE-U customer premises equipment device designed to provide broadband connectivity through a compatible LTE-FDD network.

Q2. What are the maximum published data rates?

The datasheet specifies peak rates of up to 150 Mbps downlink and 75 Mbps uplink at a 20 MHz channel bandwidth. Actual performance depends on deployment conditions.

Q3. Which frequencies does the U4G-UE1000 support?

The documented configuration specifies 5150–5250 MHz uplink and 5725–5925 MHz downlink. Confirm that these ranges match the intended LTE-U base station and regional requirements.

Q4. Does this CPE have a Gigabit Ethernet port?

Yes. It has one RJ45 Ethernet interface supporting 10/100/1000 Mbps.

Q5. Does the U4G-UE1000 support Power over Ethernet?

Yes. The documentation identifies IEEE 802.3at/af PoE support. Confirm the appropriate power source and whether it is included with the specific unit.

Q6. Can the U4G-UE1000 be used outdoors?

Yes. It has an IP65-rated enclosure and a documented operating temperature range of -40°C to 55°C. Follow the manufacturer's installation instructions.

Q7. Can it connect to any LTE base station or Wi-Fi router?

No universal compatibility is implied. It requires a compatible LTE-U network for its cellular-side connection. Its Ethernet interface can connect to suitable local network equipment when configured appropriately.

Q8. How can I confirm compatibility before ordering?

Contact Multilink Solutions with the exact MPN, intended base station, operating frequency plan, and power arrangement. These details help establish whether the model suits your deployment.
