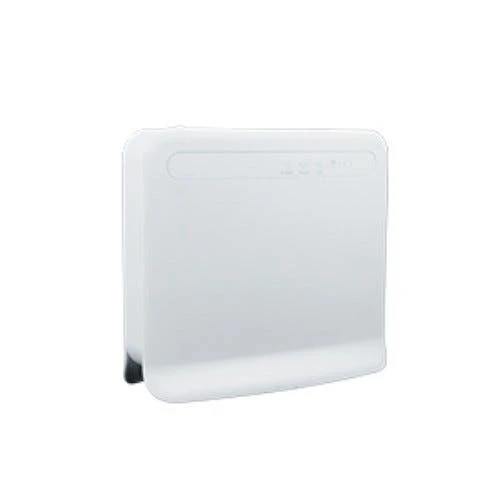

BaiCells EG2030C-M11 Atom ID04 Indoor LTE Cat 4 CPE, 3.5 GHz, Wi-Fi

The BaiCells EG2030C-M11 Atom ID04 is an indoor LTE customer-premises equipment device designed to provide broadband connectivity over compatible LTE TDD networks. It combines cellular access, integrated Wi-Fi, and wired Ethernet in a compact indoor unit.

LTE connectivity

The EG2030C-M11 supports 3GPP Release 9 LTE Cat 4 and is the 3.5 GHz version of the Atom ID04. The manufacturer identifies Bands 42, 43, and 48 for this model, with the exact supported range depending on regional configuration and certification. Its internal omnidirectional LTE antenna has a specified gain of 6.5 dBi at 3.x GHz.

The datasheet lists peak LTE rates at 20 MHz bandwidth of up to 100 Mbps downstream and 10 Mbps upstream. Actual performance depends on signal strength, network load, spectrum, and service configuration.

Wi-Fi and Ethernet

The CPE includes 2.4 GHz IEEE 802.11b/g/n Wi-Fi with 2×2 MIMO and a theoretical peak Wi-Fi rate of up to 300 Mbps under 802.11n. One RJ45 Ethernet port supports 10/100 Mbps wired connections. This is Fast Ethernet, not Gigabit Ethernet.

Network management and security

The device supports local and remote web-based management, TR-069, SIM PIN management, SIM locking, and cell locking. Additional network features include NAT or bridge mode, IPv4/IPv6, port forwarding, DMZ, firewall filtering, access control, and diagnostic tools.

Indoor deployment

The Atom ID04 is designed for indoor use where a compatible LTE network is available. Before ordering, verify the unit's frequency variant, SIM requirements, and compatibility with the intended operator. Network access and actual throughput depend on the carrier and deployment conditions.

1. Key Features

• Model / MPN: EG2030C-M11

• Product family: BaiCells Atom ID04 indoor CPE

• LTE standard: 3GPP Release 9, Cat 4

• Frequency variant: 3.5 GHz

• LTE bands: 42/43/48, subject to regional configuration

• LTE antenna: Internal omnidirectional, 1T2R

• LTE antenna gain: 6.5 dBi at 3.x GHz

• Ethernet: One RJ45 10/100 Mbps port

• Wi-Fi: 2.4 GHz IEEE 802.11b/g/n, 2×2 MIMO

• SIM: 2FF USIM, 1.8 V/3 V

• Management: Local/remote web interface and TR-069

• Network functions: NAT or bridge mode, IPv4/IPv6, firewall features

• Power: 100–240 V AC input, 12 V DC output

• Device dimensions: 193 × 168 × 74 mm

• Device weight: 400 g

2. Technical Specifications

3. Applications / Use Cases

• Indoor broadband access over compatible LTE TDD networks

• Fixed wireless access for homes, offices, and small sites

• Wi-Fi connectivity for compatible phones, laptops, tablets, and other wireless devices

• Wired network access for Ethernet-equipped devices

• LTE deployments using compatible 3.5 GHz spectrum

• Small-network deployments requiring basic routing and management functions

4. Compatibility

Before ordering, verify the following:

• LTE network: The operator must support a compatible LTE TDD frequency band.

• Frequency variant: This model is the 3.5 GHz version associated with Bands 42/43/48. Do not assume compatibility with Band 41 networks.

• SIM card: Uses a 2FF USIM supporting 1.8 V/3 V. The SIM must be activated and provisioned for a compatible LTE service.

• Wi-Fi: Compatible with 2.4 GHz IEEE 802.11b/g/n devices.

• Ethernet: Compatible with RJ45 equipment supporting 10/100 Mbps.

• Power: Use a compatible power adapter matching the required voltage, current, and connector.

• Regional approval: Check the actual unit's regulatory label and supported frequency range for the destination market.

Carrier compatibility and service availability are not guaranteed solely by the model number.

5. Frequently Asked Questions

Q1. What is the BaiCells EG2030C-M11 used for?

It is an indoor LTE Cat 4 CPE designed to provide broadband connectivity over compatible LTE TDD networks and distribute connectivity to wired and Wi-Fi devices.

Q2. Which LTE bands does this model support?

The documented model is the 3.5 GHz version associated with LTE TDD Bands 42, 43, and 48. Confirm the specific unit's supported frequencies and regional certification before ordering.

Q3. Does it support Gigabit Ethernet?

No. The manufacturer specifies one RJ45 Ethernet port supporting 10/100 Mbps.

Q4. Does the device have built-in Wi-Fi?

Yes. It supports 2.4 GHz IEEE 802.11b/g/n Wi-Fi, with 2×2 MIMO and a theoretical peak rate of up to 300 Mbps.

Q5. What type of SIM card does it use?

It uses a 2FF USIM supporting 1.8 V and 3 V. The SIM must also be provisioned for a compatible LTE network.

Q6. What are the maximum LTE speeds?

The datasheet lists peak rates at 20 MHz bandwidth of up to 100 Mbps downstream and 10 Mbps upstream. Actual speeds depend on network conditions and service configuration.

Q7. Can it be managed remotely?

Yes. The manufacturer lists local and remote web management and TR-069 support.

Q8. Will it work with any LTE carrier?

No. The carrier must support a compatible frequency band, and the device must be accepted and provisioned for that network. Confirm compatibility before purchasing.
